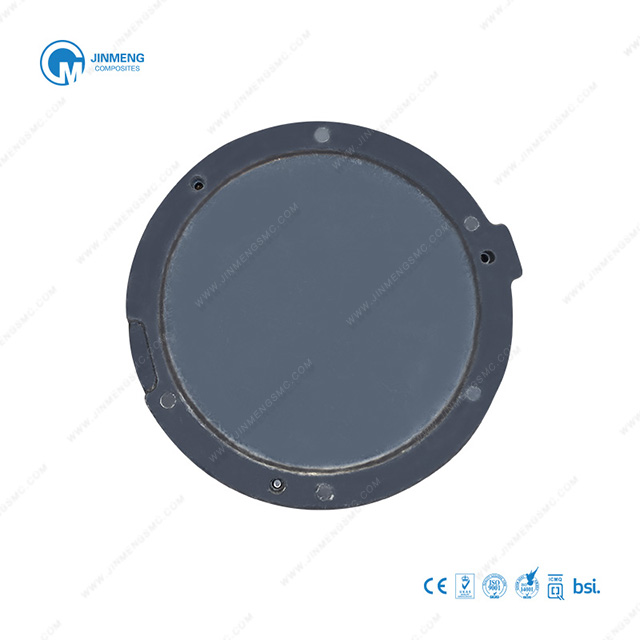

This A15 composite manhole cover is appropriate for foot traffic and slow moving pedal cyclists. A15 composite manhole cover can capable of withstanding a 15kN test load.
Made from lightweight but durable composite material.
Manhole Covers are available in a wide range of types, sizes and specifications.
We offer a bespoke fabrication service whereby your cover is manufactured exactly to the dimensions required!
SPECIFCATIONS
CODE | LOAD | D | O | F | h | H | Features |
JM-MR123A | A15 | 375 | 315 | 430 | 32 | 100 | screw lock & Weight 12.0kg/20ft Full Load Qty 1300 |
BS EN124 A15 Class | BS EN 124 C250 Class | ||
Suitable for areas which can only used by pedestrians and pedal cyclitst | Installed in the area of beside channels or road. | ||
BS EN124 B125 Class | BS EN124 D400 Class | ||
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. | For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles. |
FEATURES
High wave-transmissivity | Corrosion resistance | ||
Three locking screws | Very light | ||
Surface pattern and other customization service is supported |
ACCESSORIES
Locking screw | lifting area |
