Features Summary
1. Two un-vented holes will not allow free air release from inner manhole chamber and easy to lift the cover.
2. Rubber sealing has better shockproof and waterproof performance.
3. Customer Logo, Inscriptions and cover customized design service is supported.
4. Various color options is available and Black or Grey are recommended.
SPECIFCATIONS
CODE | LOAD | D | O | F | h | H | Features |
JM-MR106B | B125 | 750 | 700 | 865 | 40 | 60 | Weight 36.0kg/20ft Full Load Qty 384 |
JM-MR106C | C250 | 680 | 600 | 800 | 50 | 100 | Screw Lock & Weight 57.4kg/20ft Full Load Qty 400 |
JM-MR106D | D400 | 750 | 700 | 865 | 40 | 60 | Weight 36.0kg/20ft Full Load Qty 384 |
BS EN124 A15 Class | BS EN 124 C250 Class | ||
Suitable for areas which can only used by pedestrians and pedal cyclitst | Installed in the area of beside channels or road. | ||
BS EN124 B125 Class | BS EN124 D400 Class | ||
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. | For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles. |
FEATURES
Two Lifting Holes Are Easy For Operation | Corrosion Resistance | ||
High Wave-transmissivity | Color Customization | ||
Surface pattern and other customization service is supported |
ACCESSORIES
Lifting Hole | Anti-skid Pattern | Logo Area |

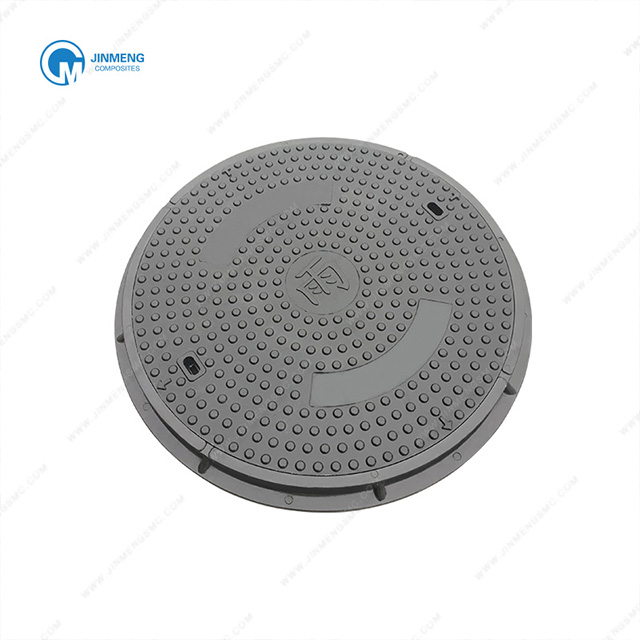

JM-MR106B Composite Manhole Cover conforms to BS EN124 B125 Class and is suitable for footways, pedestrian areas and comparable parks or car parking decks.
JM-MR106C Composite Manhole Cover conforms to BS EN124 C250 Class and is suitable for gullytops installed in the area of curbside channels of roads.

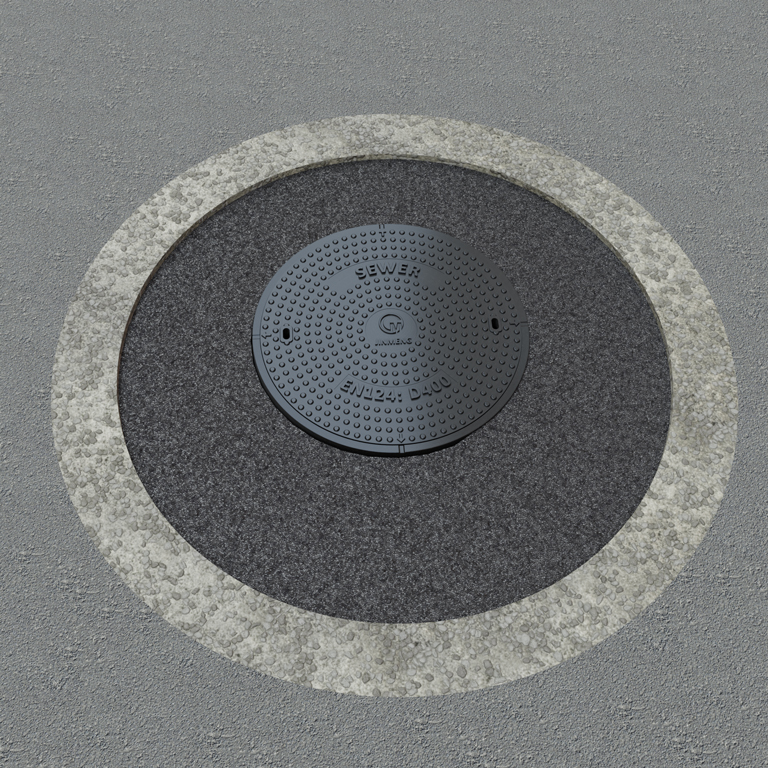

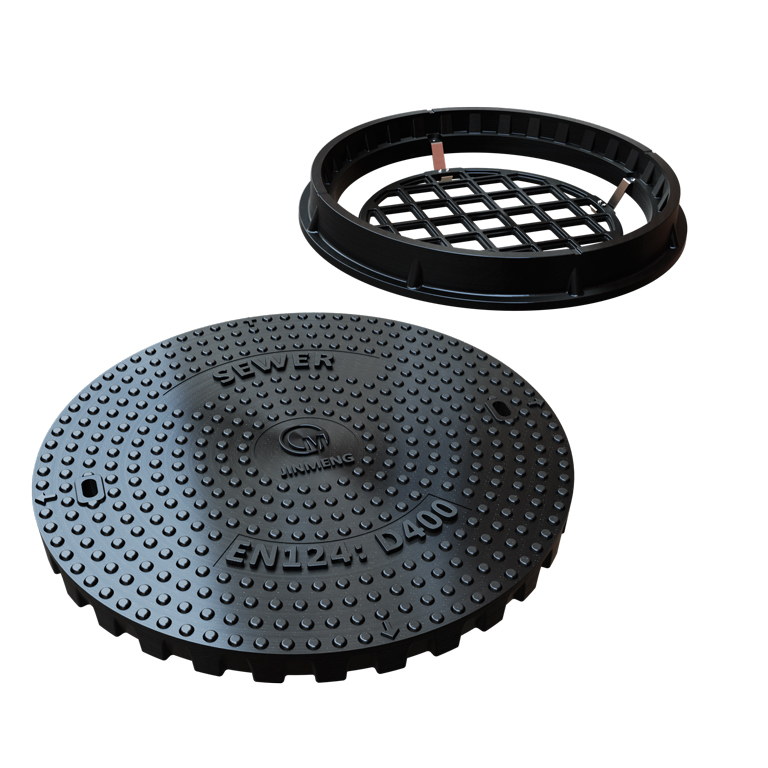

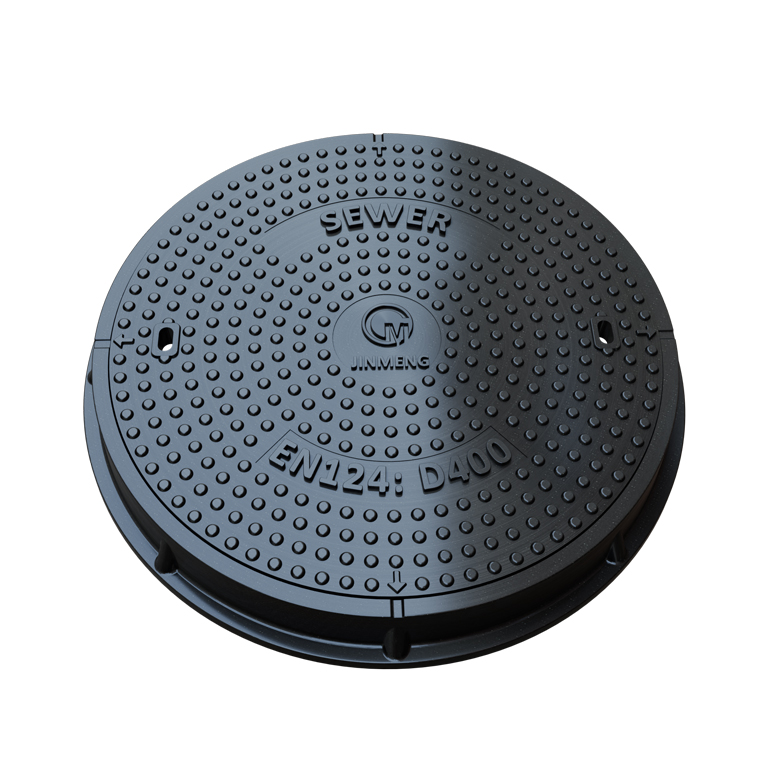

JM-MR106D Composite Manhole Cover conforms to BS EN124 D400 Class and is suitable for Carriageways of roads, hard shoulders and parking areas, for all types of vehicles.
EN124 standard |
Class | Traffic Description | Proof Load kN | Proof Load lbs. |
A15 | Areas which can only be used by pedestrians and pedal cyclists. | 15 kN | 3,375 lbs. |
B125 | Footways, pedestrian areas and comparable parks or car parking decks. | 125 kN | 28,100 lbs. |
C250 | For gullytops installed in the area of curbside channels of roads. | 250 kN | 56,200 lbs. |
D400 | Carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles. | 400 kN
| 89,925 lbs.
|
E600 | Areas of imposing high wheel loads, e.g. dock and aircraft pavements. | 600 kN | 134,885 lbs. |
