Main Description
SPECIFCATIONS
| CODE | LOAD | D | O | F | h | H | Features |
JM-MR105D1-WP | D400 | 993 | 900 | 1089 | 34 | 100 | watertight & Weight 92.5kg/20ft Full Load Qty 190 |
 | BS EN124 A15 Class |  | BS EN 124 C250 Class |
| Suitable for areas which can only used by pedestrians and pedal cyclitst | Installed in the area of beside channels or road. | ||
 | BS EN124 B125 Class |  | BS EN124 D400 Class |
| Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. | For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles. |
FEATURES
 | Specialized for petrol station |  | Corrosion resistance |
 | Waterproof with rubber sealing |  | Shock absorption by rubber sealing |
 | High wear resistance performance |
ACCESSORIES

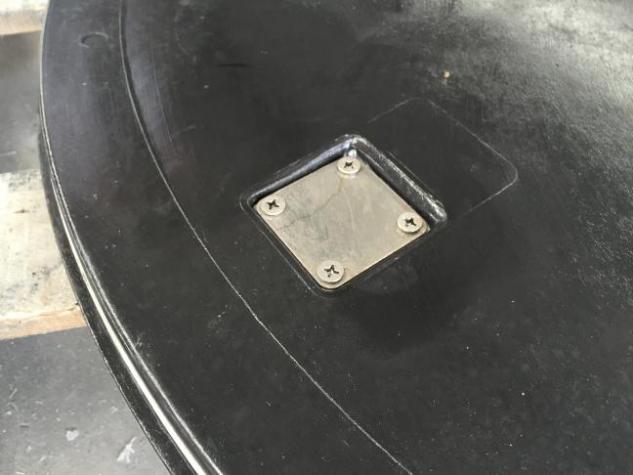

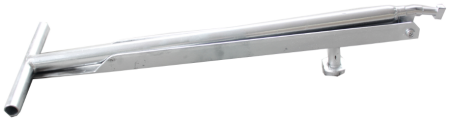

 Lifting Key |  Rubber Seal |  Logo Area |

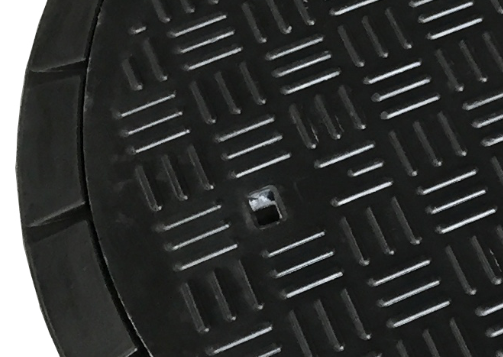

 Lifting Hole |
Antiskid Panel |
Product Details

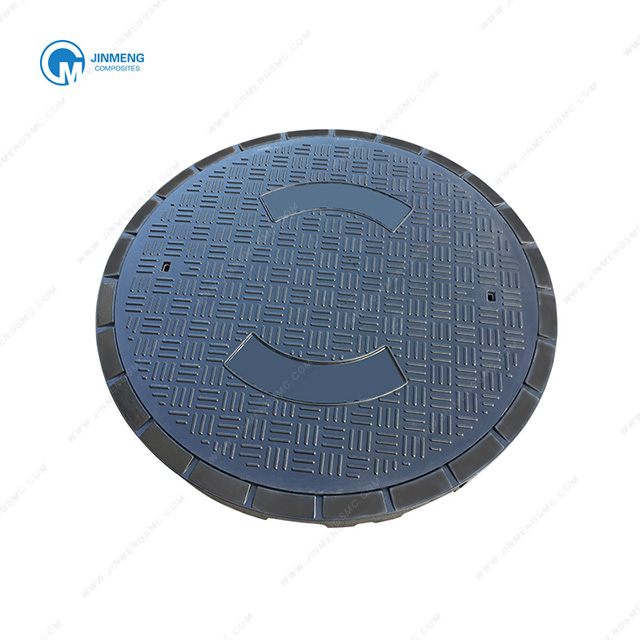

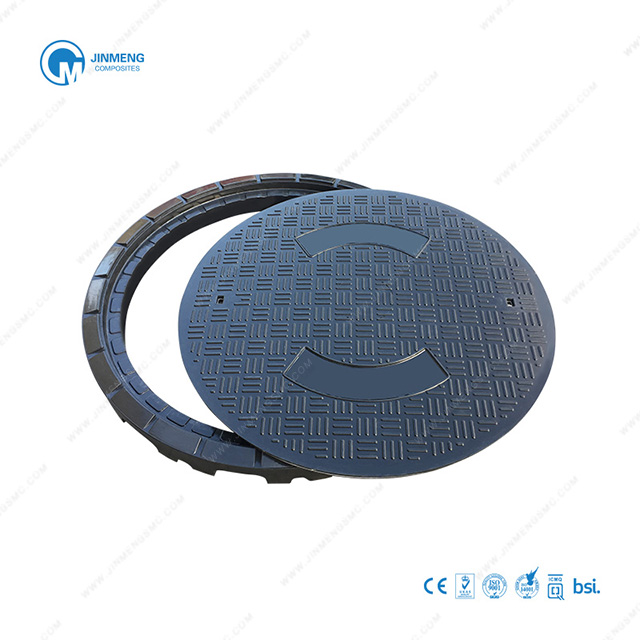

Innovative material improvements and structure performance, JM-MR105D high load rating Composite Manhole Cover conforms to BS EN124 D400 Class and is suitable for petrol station.

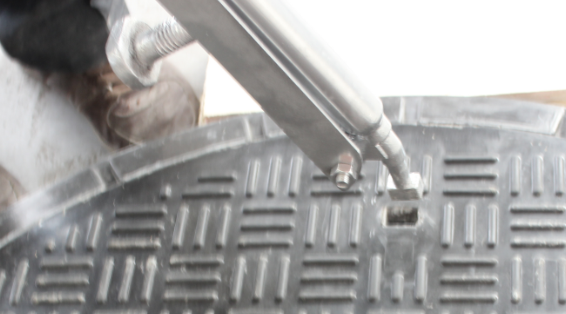

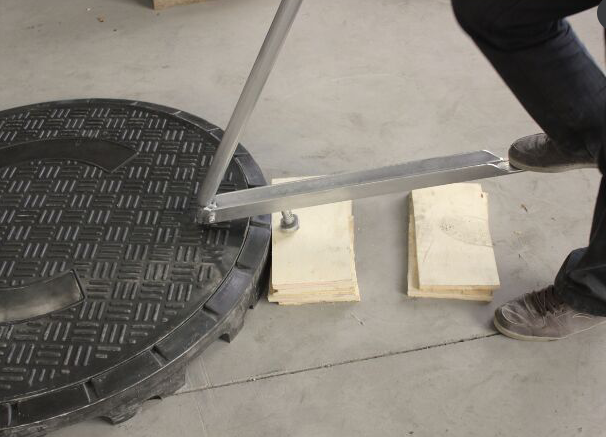

The opening tool is easy to lift the cover.

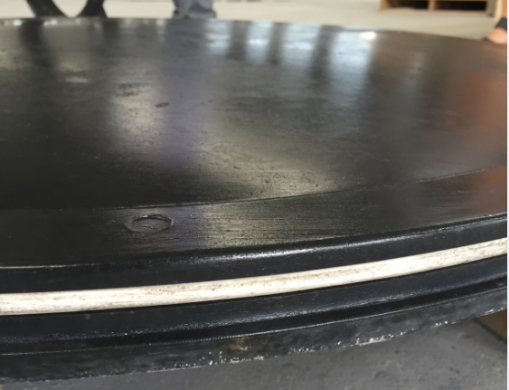

Rubber sealing has better shockproof and waterproof performance.
Customer Logo, Inscriptions and cover customized design service is supported.
Various color options is available and Black is recommended.
