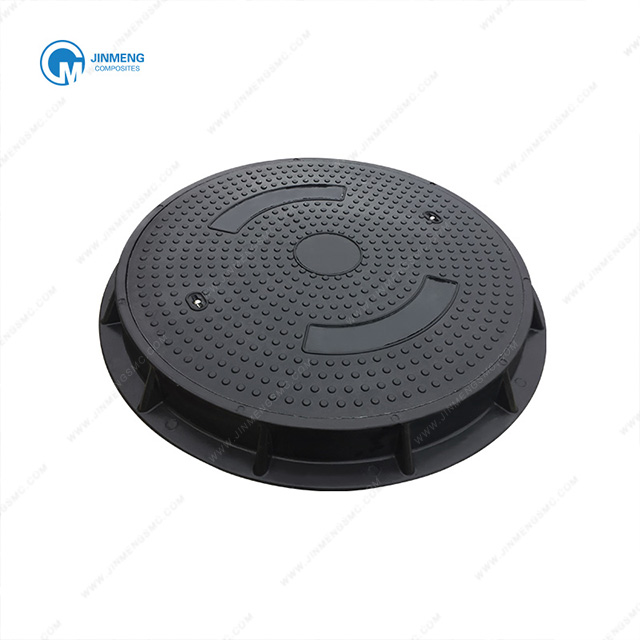

Jinmeng Dia 790mm Round Cover With Round Frame.

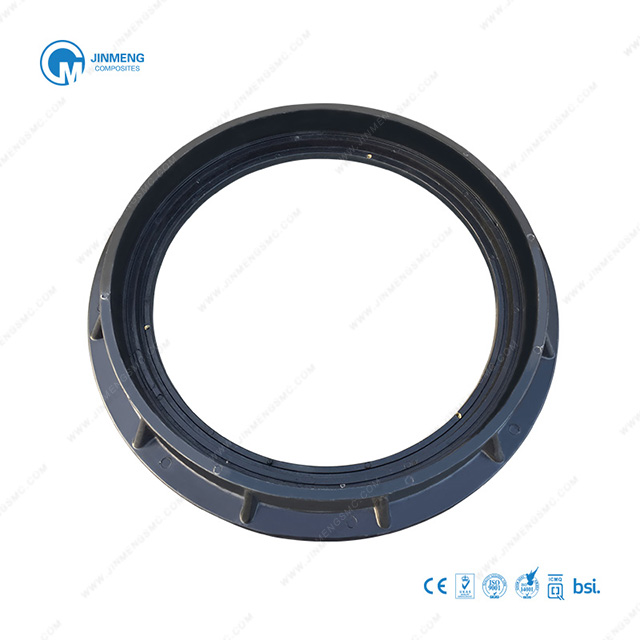

Double seal and double lifting screw, the clear opening of the frame is 790 mm Dia, frame depth is 113mm.
Our composite round manhole cover deliver ultimate durability and easy lift provision.
SPECIFCATIONS
CODE | LOAD | D | O | F | h | H | Features |
JM-MR105A | A15 | 900 | 790 | 1065 | 70 | 113 | Weight 64.4kg/20ft Full Load Qty 170 |
JM-MR105B | B125 | 900 | 790 | 1065 | 70 | 113 | Screw lock & Weight 74.8kg/20ft Full Load Qty 170 |
JM-MR105C | C250 | 900 | 790 | 1065 | 70 | 113 | Weight 74.8kg/20ft Full Load Qty 170 |
JM-MR105D | D400 | 900 | 790 | 1065 | 70 | 113 | Weight 96.2kg/20ft Full Load Qty 170 |
BS EN124 A15 Class | BS EN 124 C250 Class | ||
Suitable for areas which can only used by pedestrians and pedal cyclitst | Installed in the area of beside channels or road. | ||
BS EN124 B125 Class | BS EN124 D400 Class | ||
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. | For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles. |
FEATURES
Clamshell design protects the cover from stealing | Two lifting screws are easy for operation | ||
High wear resistance performance | Shock absorption by rubber sealing | ||
Surface pattern and other customization service is supported | With good sealing and prevention of harmful smell leakage |
ACCESSORIES
Lifting Screw | Antiskid Panel | Logo Area |
Lifting Key |
JM-MR105A Composite Manhole Cover conforms to BS EN124 A15 Class and is suitable for areas which can only be used by pedestrians and pedal cyclists.
JM-MR105B Composite Manhole Cover conforms to BS EN124 D400 Class and is suitable for Carriageways of roads, hard shoulders and parking areas, for all types of vehicles.
JM-MR105C Composite Manhole Cover conforms to BS EN124 D400 Class and is suitable for gullytops installed in the area of curbside channels of roads.
JM-MR105D Composite Manhole Cover conforms to BS EN124 D400 Class and is suitable for Carriageways of roads, hard shoulders and parking areas, for all types of vehicles.
