Main Description
SPECIFCATIONS
| CODE | LOAD | D | O | F | h | H | Features |

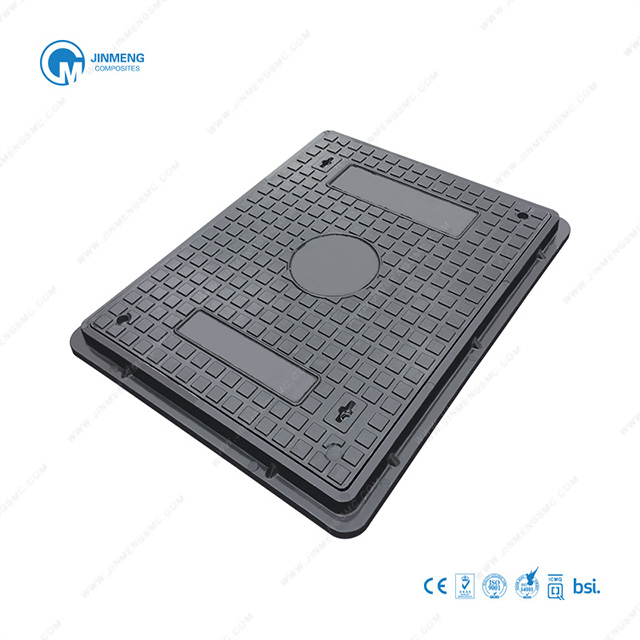

JM-MS209A | A15 | 650x500 | 600x450 | 725x575 | 26 | 40 | 4 screw & Weight 15.5kg/20ft Full Load Qty 1350 |
JM-MS209B | B125 | 650x500 | 600x450 | 725x575 | 26 | 40 | 4 screw & Weight 20.5kg/20ft Full Load Qty 1000 |
 | BS EN124 A15 Class |  | BS EN 124 C250 Class |
| Suitable for areas which can only used by pedestrians and pedal cyclitst | Installed in the area of beside channels or road. | ||
 | BS EN124 B125 Class |  | BS EN124 D400 Class |
| Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. | For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles. |
FEATURES
 | Anti-UV |  | Surface pattern and other customization service is supported |
 | Stainless screw locking sysytem |  | Fireproofing |
 | High anti-corrosion performance |  | Very light enables one person to lift |
ACCESSORIES
 Lifting screw |  Stainless steel lock |  Logo area |
 Surface pattern |
