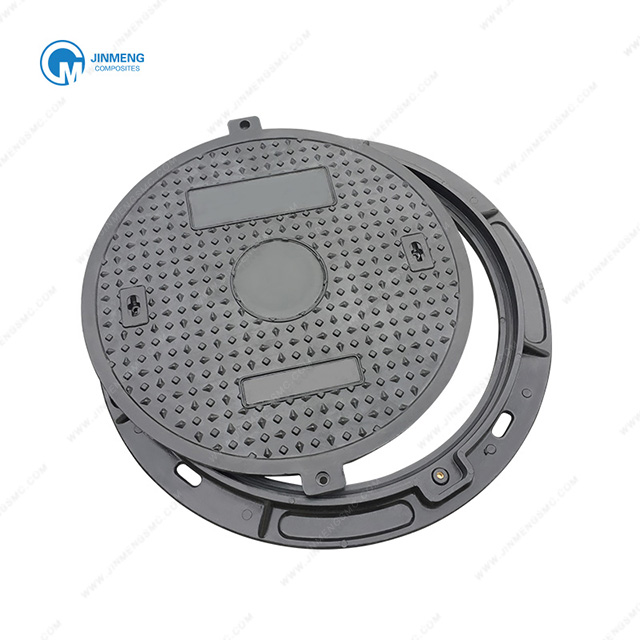

600mm Round Sewer Manholes Cover

The sealing performance between the composite manhole cover and the frame is better than that of iron products, so there is no noise pollution during use. The wear resistance is good, the use area is more than that of iron products, and the composite material can also transmit radio frequency waves without disturbing data recording.
  • JM-MR102
  • A15, B125
Availability:

Main Description

SPECIFCATIONS   SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MR102A

A15

650

600

780

26

40

screw lock & Weight 13.6kg/20ft Full Load Qty 1000

JM-MR102B

B125

650

600

780

26

40

screw lock & Weight 23.0kg/20ft Full Load Qty 1000




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



suitable for the factory suitable for the factory wear resistance High wear resistance performance
high wear resistance performance High Anti-corrosion performance feature-04 Shock absorption by rubber sealing
2-MR111D Surface pattern and other customization service is supported



ACCESSORIES


6-Rubber Seal

Rubber Seal

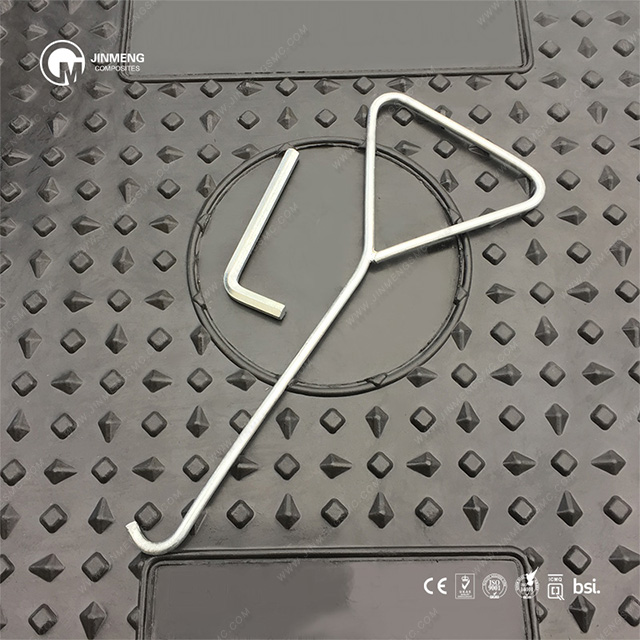

6-Lifting screw

Lifting Screw


6-Through Hole

Through Hole

6-Screw lock

Screw Lock


6-Logo area

Logo Area


6-Accessories

Accessories
