Home / Products / Round Manhole Cover / 600mm Round Manhole Frame and Covers

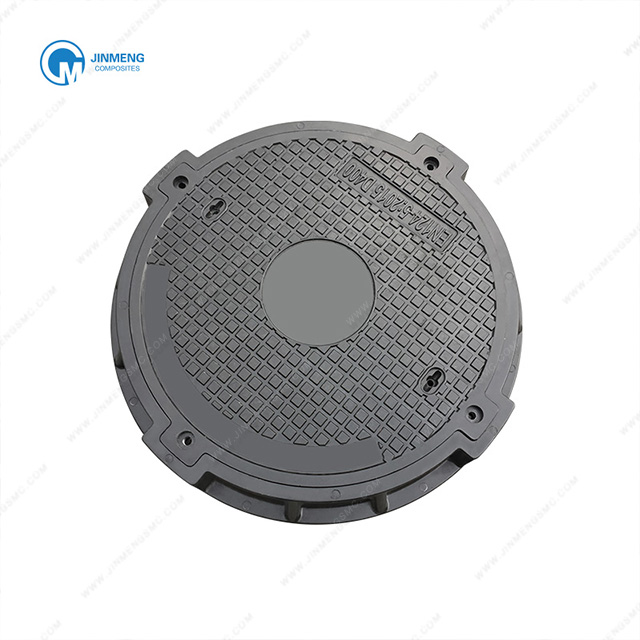

600mm Round Manhole Frame and Covers

  • JM-MR100D
  • D400
Availability:

Main Description

SPECIFCATIONS

SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MR100D

D400

680

600

800

50

100

Screw lock& Weight 57.4kg/20ft Full Load Qty 400




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



four locking screws, preventing rotation Four locking screws, preventing rotation With good sealing and prevention of harmful smell leakage With good sealing and prevention of harmful smell leakage
two lifting screws are easy for operation Two lifting screws are easy for operation feature-04 Shock absorption by rubber sealing
2-MR111D Surface pattern and other customization service is supported



ACCESSORIES


Lifting screw

Lifting screw


Locking screw

Locking screw


Logo area

Logo area

Lifting key

Lifting key


Antiskid panel

Antiskid panel
