Product Details

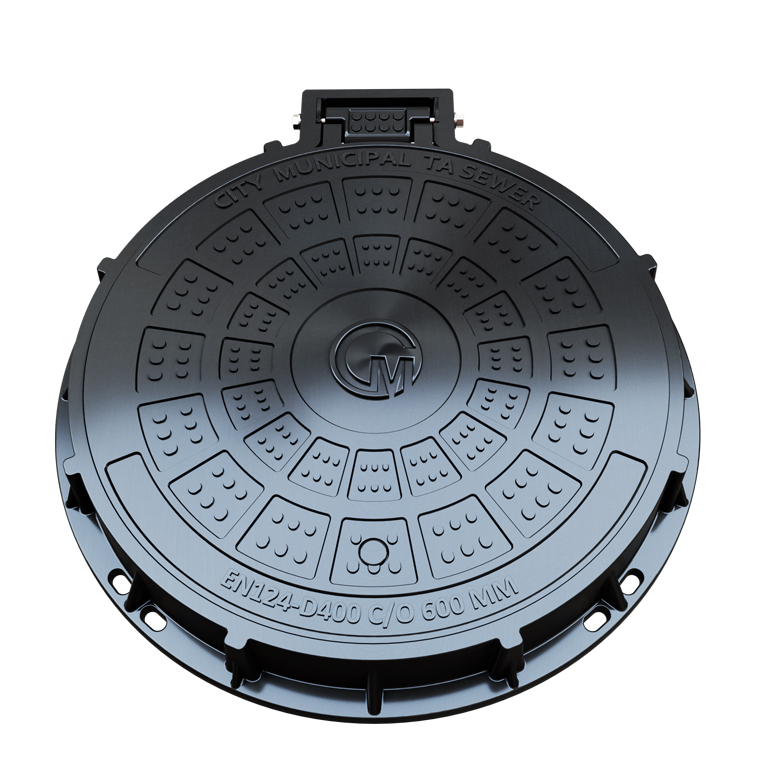

JM-MR101D1 Composite Manhole Cover conforms to BS EN124 D400 class and is suitable for carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
JM-MR101C1 Composite Manhole Cover conforms to BS EN124 C250 class and is suitable for gullytops installed in the area of curbside channels of roads.
JM-MR101A1 Composite Manhole Cover conforms to BS EN124 A15 class and is suitable for areas which can only be used by pedestrians and pedal cyclists.

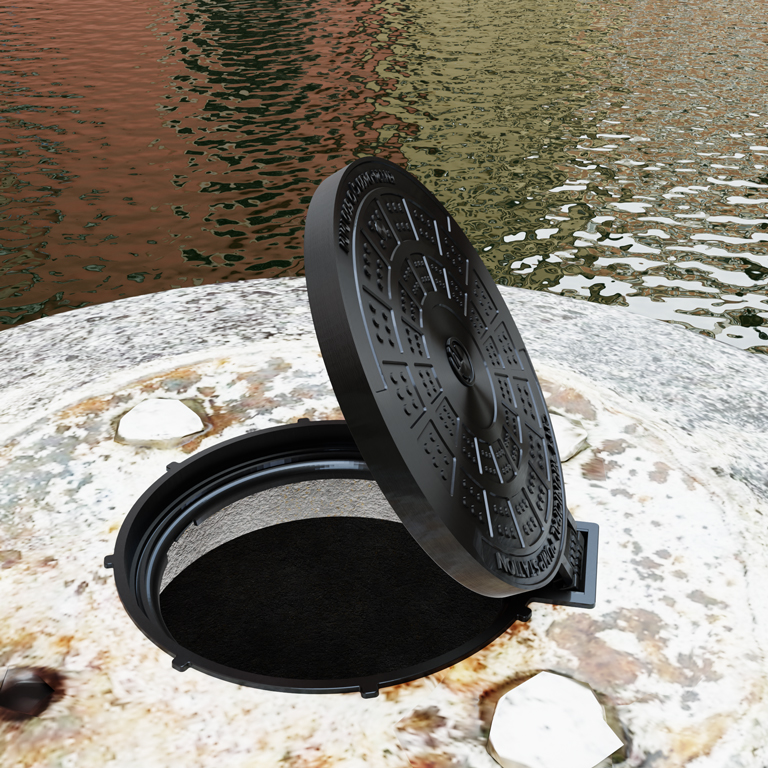

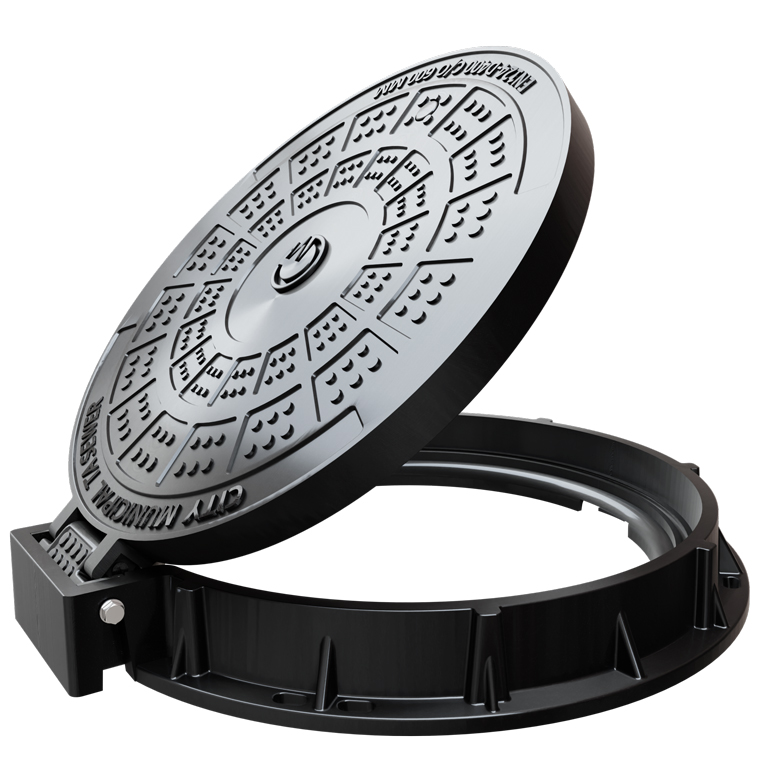

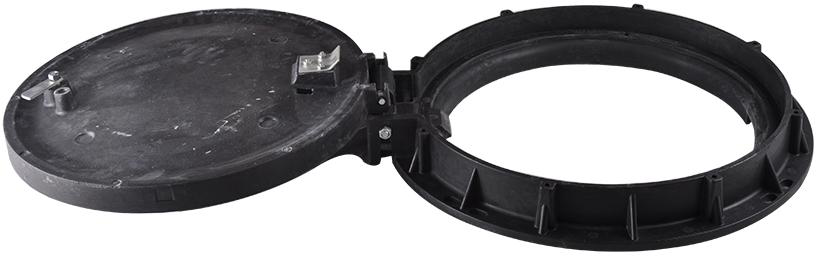

The 180 degree flip design and special design anti-theft key ensure the safety of operation.
Rubber sealing
Customer Logo, Inscriptions and cover customized design service is supported.

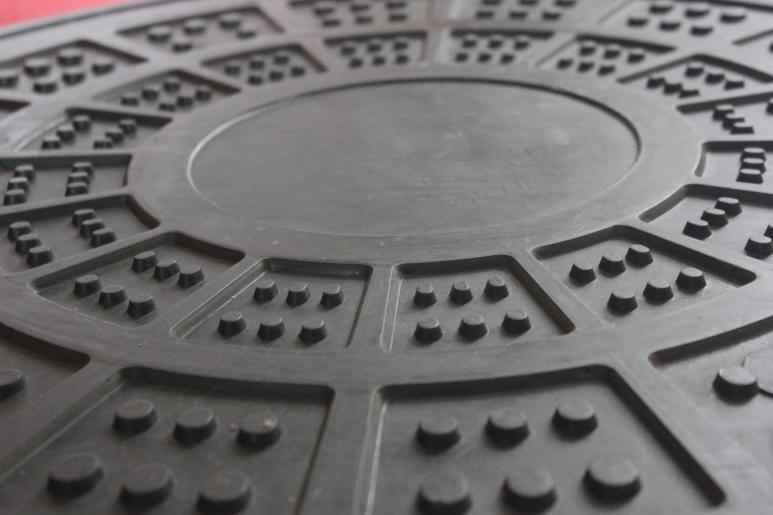

We have a professional design team helping you design customized tread type.
Various color options is available
Benchmarks
SPECIFCATIONS
| CODE | LOAD | D | O | F | h | H | Features |
JM-MR101D1 | D400 | 690 | 600 | 805 | 50 | 100 | L lock & Weight 53.0kg/20ft Full Load Qty 400 |
JM-MR101C1 | C250 | 690 | 600 | 805 | 50 | 100 | L lock & Weight 46.0kg/20ft Full Load Qty 400 |
JM-MR101A1 | A15 | 690 | 600 | 805 | 50 | 100 | L lock & Weight 30.8kg/20ft Full Load Qty 400 |
FEATURES
 | Clamshell design protects the cover from stealing |  | Corrosion resistance |
 | Non conduction |  | Shock absorption by rubber sealing |
 | Surface pattern and other customization service is supported |  | Fireproofing |
