4-JM-MR112CD
Special designed Locking System only allow its matched key to open with high security.
Customer Logo, Inscriptions and cover customized design service is supported.
120 °flip design makes the operation easier without injury.
Rubber sealing reduce the vehicle passing noise and expend cover service life.
Various color options is available and Black is recommended.
SPECIFCATIONS
CODE | LOAD | D | O | F | h | H | Features |
JM-MR112C | C250 | 650 | 600 | 790 | 48 | 100 | L lock & Weight 39.1kg/20ft Full Load Qty 420 |
JM-MR112D | D400 | 650 | 600 | 790 | 48 | 100 | L lock & Weight 45.0kg/20ft Full Load Qty 420 |
BS EN124 A15 Class | BS EN 124 C250 Class | ||
Suitable for areas which can only used by pedestrians and pedal cyclitst | Installed in the area of beside channels or road. | ||
BS EN124 B125 Class | BS EN124 D400 Class | ||
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. | For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles. |
FEATURES
Clamshell design protects the cover from stealing | Shock resistance | ||
With good sealing and prevention of harmful smell leakage | Shock absorption by rubber sealing | ||
Surface pattern and other customization service is supported |
ACCESSORIES
Slide pedal lock | Locking system | Through hole |
Rubber sealing | Logo area | 120 degree opening |

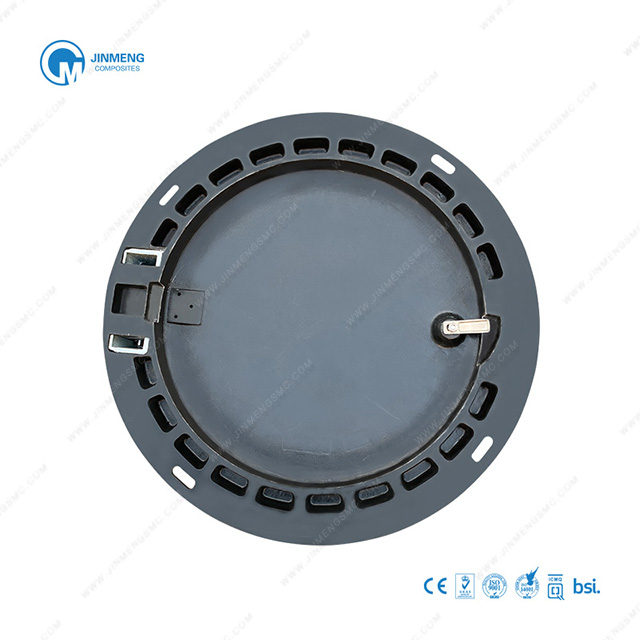

JM-MR112C Composite Manhole Cover conforms to BS EN124 C250 Class and is suitable for gullytops installed in the area of curbside channels of roads.
JM-MR112D Composite Manhole Cover conforms to BS EN124 D400 Class and is suitable for Carriageways of roads, hard shoulders and parking areas, for all types of vehicles.
