600mm(24") Hinged Round Manhole Cover

MR112B
Special designed Locking System only allow its matched key to open with high security.
Customer Logo, Inscriptions and cover customized design service is supported.
120 °flip design makes the operation easier without injury.
Rubber sealing reduce the vehicle passing noise and expend cover service life.
Various color options is available and Black is recommended.
  • JM-MR112B
  • B125
Availability:

Main Description

SPECIFCATIONS   SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MR112B

B125

650

600

745

35

55

T lock & Weight 25.0kg/20ft Full Load Qty 756




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



feature-01 Clamshell design protects the cover from stealing stainless screw locking sysytem Special locking device is difficult for others to open
JM-MR112B With good sealing and prevention of harmful smell leakage feature-04 Shock absorption by rubber sealing
2-MR111D Surface pattern and other customization service is supported



ACCESSORIES

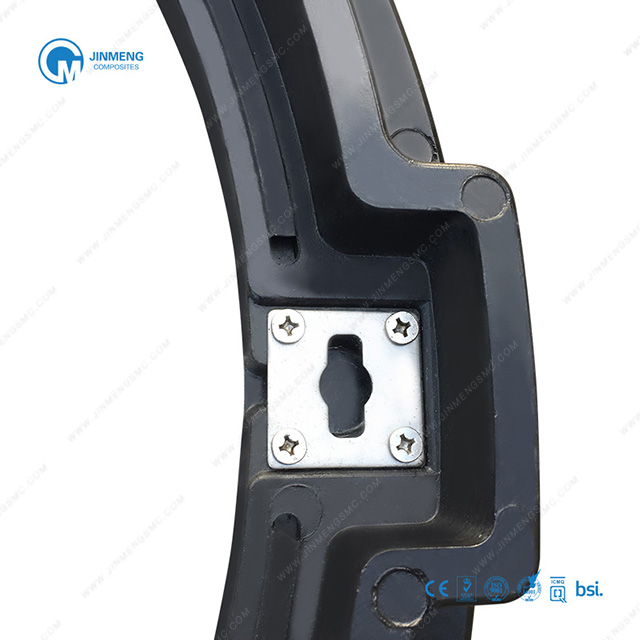

4-Special Locking Device

Special Locking Device(T lock)


Through Hole(T lock)

Through Hole(T lock)


4-Logo Area

Logo Area

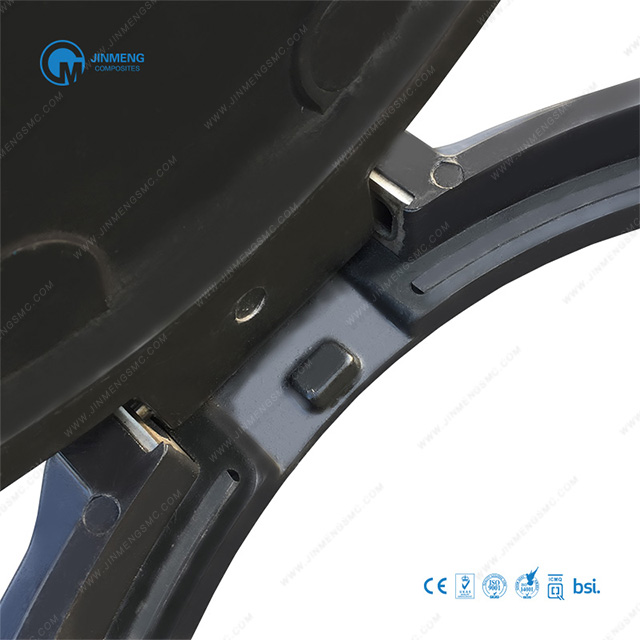

4-Hinge

Hinge


4-Rubber Seal

Rubber seal



Product Details

JM-MR112B Composite Manhole Cover conforms to BS EN124 B125 Class and is suitable for footways, pedestrian areas and comparable parks or car parking decks.


JM-MR112B Composite Manhole Cover
