Home / Products / Square Manhole Cover / 550mm Square Manhole Cover Heavy Duty

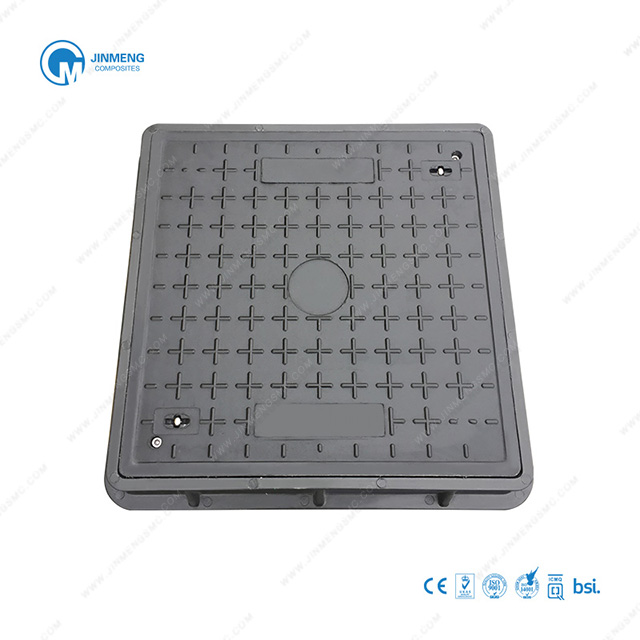

550mm Square Manhole Cover Heavy Duty

  • JM-MS202
  • C250, D400
Availability:

Main Description

SPECIFCATIONS   SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MS202C

C250

600x600

550x550

705x705

50

82

4 screw & Weight 42.5kg/20ft Full Load Qty 495

JM-MS202D

D400

600x600

550x550

705x705

50

100

4 screw & Weight 53.0kg/20ft Full Load Qty 400




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



anti-UV Anti-UV surface pattern Surface pattern and other customization service is supported
high wave-transmissivity High wave-transmissivity feature-04 Shock absorption by rubber sealing
high anti-corrosion High anti-corrosion performance high loading High loading capacity



ACCESSORIES


lifting & locking screws

Lifting & Locking Screws


anti-skid pattern

Anti-skid pattern


logo area

Logo area

accessories

Accessories
