550mm Round Manhole Cover

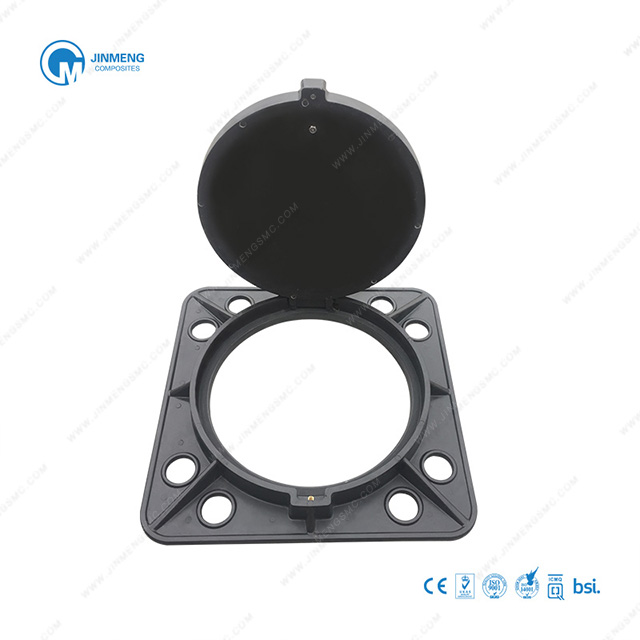

The articulated type of SMC round manhole cover is lightweight and can be operated by only one person. The recycled resin material is not used for the second time, so it will not be reused after being stolen. It has good carrying capacity and the strength of steel products, but it has higher toughness and will not brake into fragments.
  • JM-MRS103D
  • D400
Availability:

Main Description

SPECIFCATIONS

SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MRS103D

D400

600

550

800*800

50

75

screw lock & Weight 40.0kg/20ft Full Load Qty 364




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



feature-01 Clamshell design protects the cover from stealing stainless-screw-locking-sysytem-180-140 One crew for locking & one screw for lifting
fireproofing-180-140 Fireproofing 未标题-2 With good sealing and prevention of harmful smell leakage
2-MR111D Surface pattern and other customization service is supported



ACCESSORIES

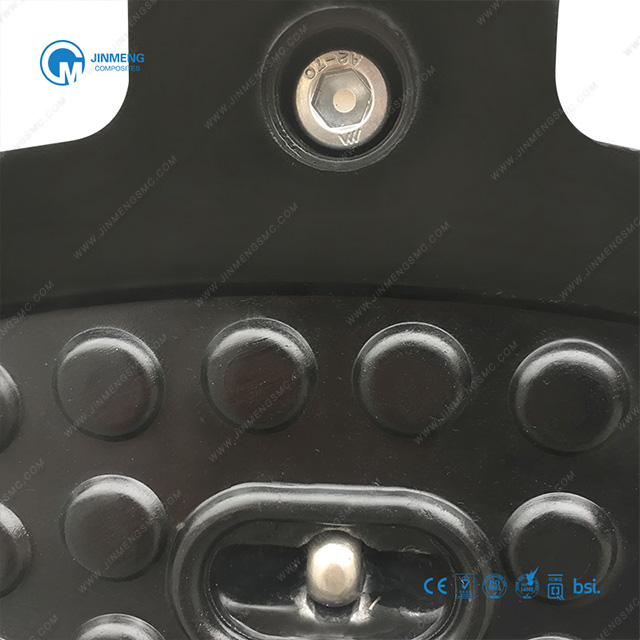

Lifting screw

Lifting screw


Locking screw

Locking screw

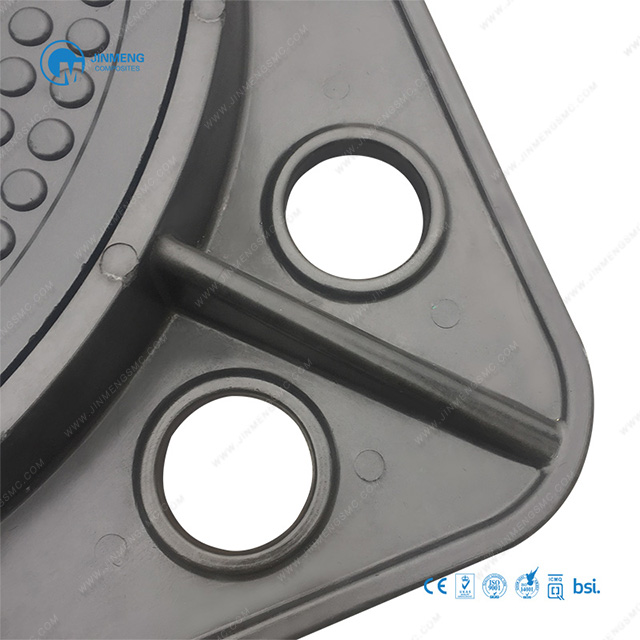

Through hole

Through hole

Logo area

Logo Area


Hinge

Hinge
