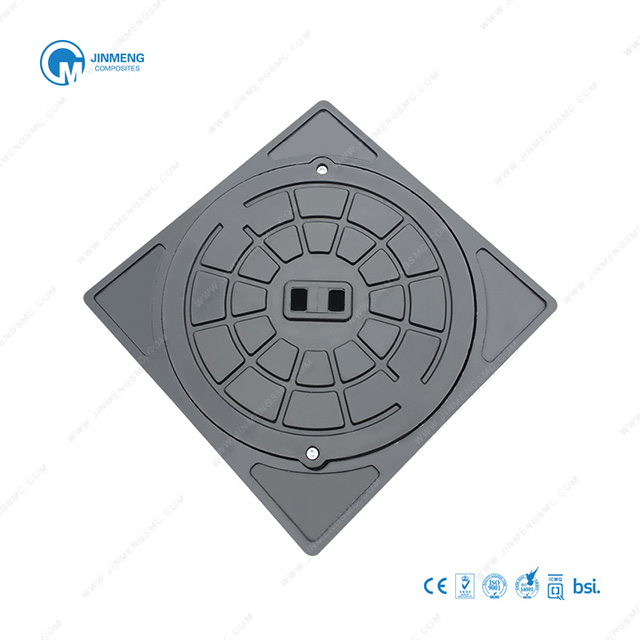

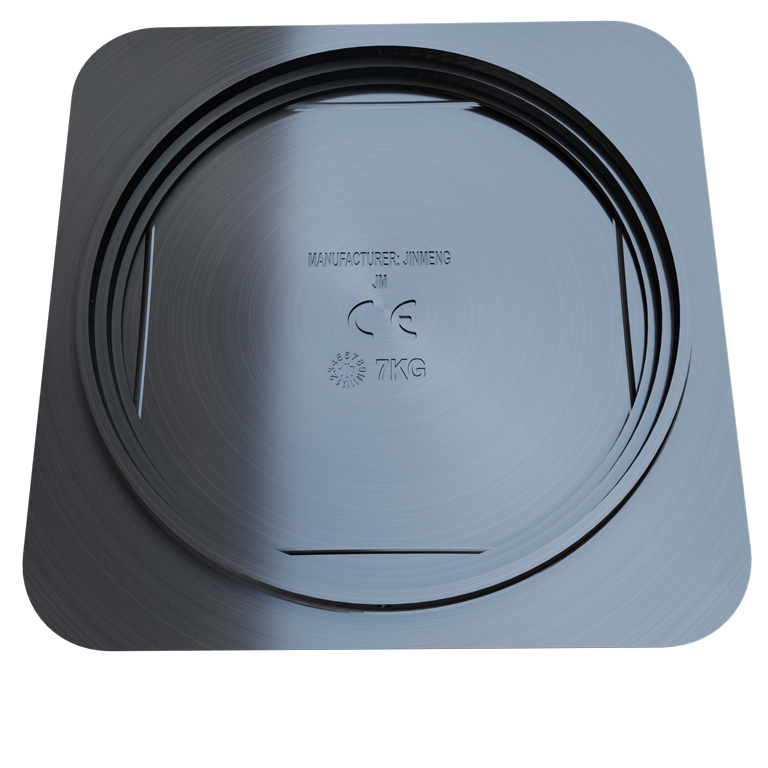

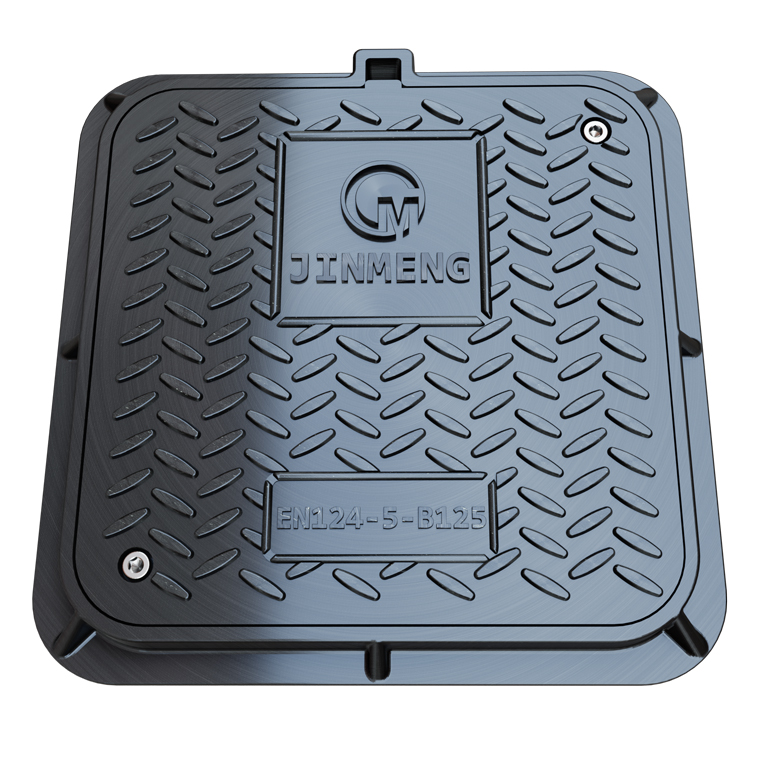

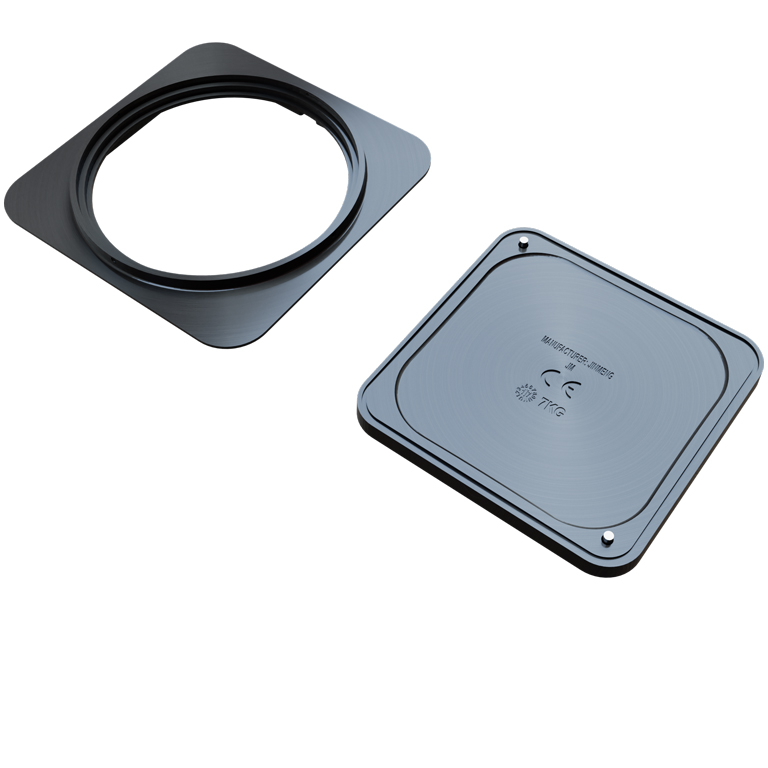

315mm Composite Valve Box

  • JM-MRS315
  • A15, B125, D400
Availability:

Main Description

SPECIFCATIONS   SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MRS315A

A15

334

315

375x375

14

80

2 locking screw & Weight 3.6kg/20ft Full Load Qty 1875

JM-MRS315B

B125

334

315

375x375

14

80

2 locking screw & Weight 5.6kg/20ft Full Load Qty 1875

JM-MRS315D

D400

334

315

375x375

45

110

2 locking screw & Weight 11.8kg/20ft Full Load Qty 1350




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



anti-UV Anti-UV surface pattern Surface pattern and other customization service is supported
high wave-transmissivity High wave-transmissivity fireproofing Fireproofing
high anti-corrosion High anti-corrosion performance



ACCESSORIES


screw lock

Screw lock


lifting hole

Lifting hole


logo area

Logo area

anti-skid pattern

Anti-skid pattern
