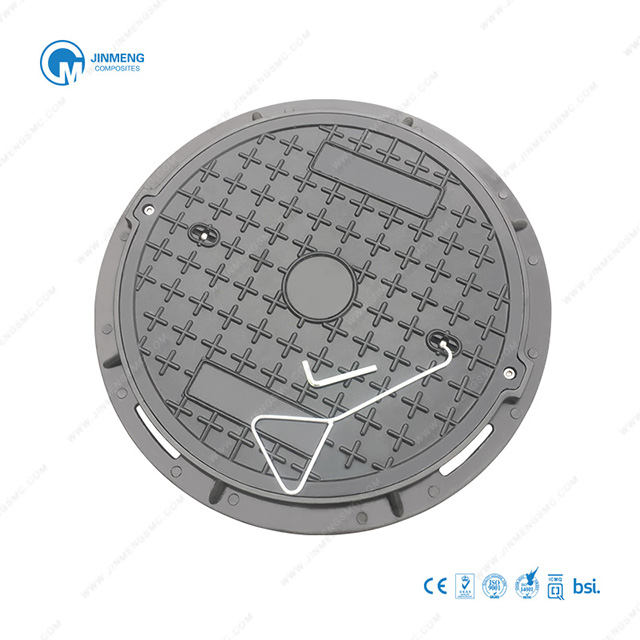

22" Round Manhole Cover

The traditional ductile iron manhole covers will wear out over time, especially when it is raining and humid, which poses a serious safety risk to the car and two-wheeler. The structure produced by the composite round manhole cover is many times stronger than traditional metal materials, non-slip, light weight, safe and reliable.
  • JM-MR103
  • A15, B125
Availability:

Main Description

SPECIFCATIONS   SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MR103A

A15

600

550

700

25

35

screw lock & Weight 8.8kg/20ft Full Load Qty 1270

JM-MR103B

B125

600

550

700

25

35

screw lock & Weight 16.6kg/20ft Full Load Qty 1270




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



6-two locking screws, preventing rotation Two Locking Screws, Preventing Rotation Two Lifting Holes Are Easy For Operation Two Lifting Holes Are Easy For Operation
wear resistance High wear resistance performance feature-04 Shock absorption by rubber sealing
2-MR111D Surface pattern and other customization service is supported



ACCESSORIES



6-Lifting Screw (MR103)

Lifting Screw


6-Locking Screw (MR103)

Locking Screw


6-Logo Area (MR103)

Logo Area

6-Lifting Key (MR103)

Lifting Key
