Home / Products / Round Manhole Cover / 20" Round Manhole Cover

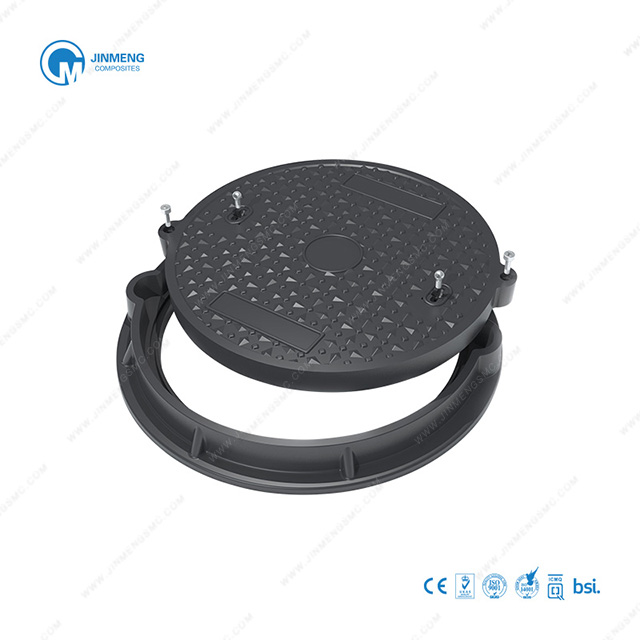

20" Round Manhole Cover

Share to:

The composite manhole cover has a long service life. SMC is a polymer composite material, mainly made of high-performance resin, glass fiber and mineral fillers and other reinforcing materials, which can ensure the penetration of resin in the glass fiber and greatly enhance the internal adhesion, so the product can be effectively Load. It has high fatigue strength and frequency under its action, and the service life is usually not less than 30 years.

  • JM-MR103
  • C250,D400

SPECIFCATIONS   SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MR103C

C250

600

500

725

50

75

screw lock & Weight 30.8kg/20ft Full Load Qty 598

JM-MR103D

D400

600

500

725

50

75

screw lock & Weight 33.4kg/20ft Full Load Qty 598




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



6-two locking screws, preventing rotation Two Locking Screws, Preventing Rotation Two Lifting Holes Are Easy For Operation Two Lifting Holes Are Easy For Operation
With good sealing and prevention of harmful smell leakage With good sealing and prevention of harmful smell leakage feature-04 Shock absorption by rubber sealing
2-MR111D Surface pattern and other customization service is supported



ACCESSORIES



6-Antiskid Panel (MR103CD)

Antiskid Panel


6-Lifting Screw (MR103CD)

Lifting Screw

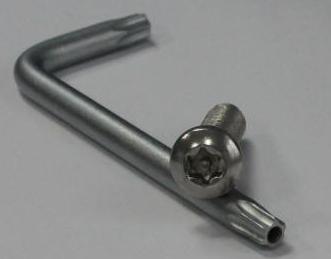

6-Locking Screw(MR103CD)

Locking Screw


6-Logo Area (MR103CD)

Logo Area








Innovative material improvements and structure performance, JM-MR103D high load rating Composite Manhole Cover conforms to BS EN124 D400 Class and is suitable for carriageways of roads, hard shoulders and parking areas.

JM-MR103C Composite Manhole Cover conforms to BS EN124 C250 Class and is suitable for kerbside channels of road and Residential District.

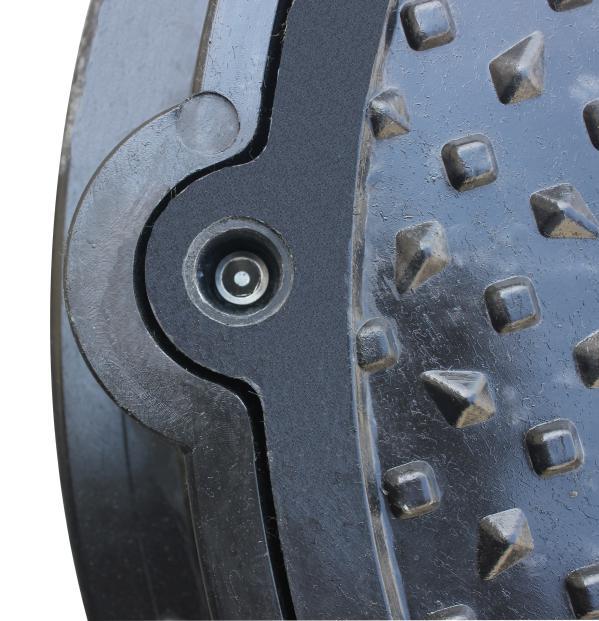

Two S.S screw lock fasten cover with frame, high safety and easy maintenance.

Optional Security Screw.



Water-tight hole allows easy to lift the cover.


Customer Logo, Inscriptions and cover customized design service is supported.

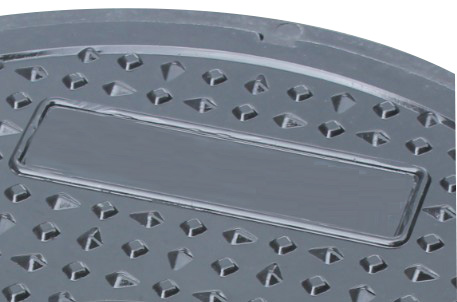

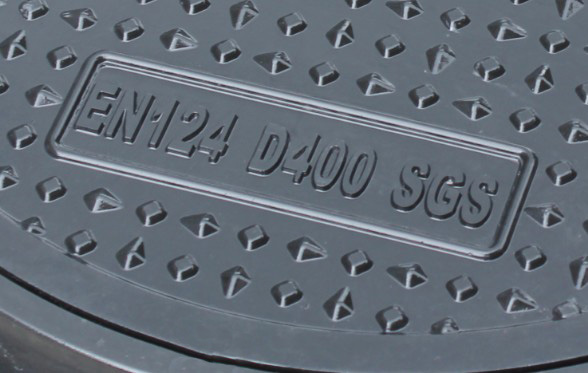

Top Inscription

Top Inscription

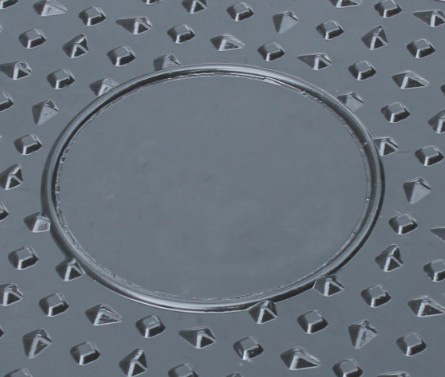

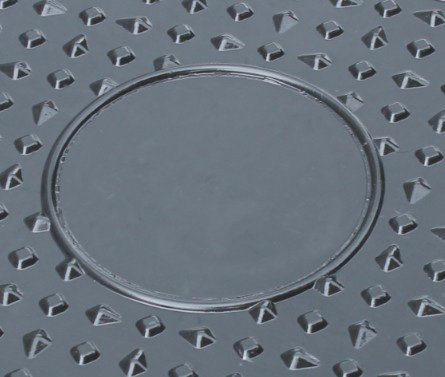

Middle Inscription (logo)

Middle Inscription (logo)


Bottom Inscription

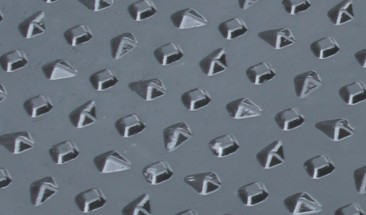

Surface Pattern

Surface Pattern


Various color options is available and Black is recommended.


 Product Certification

FAQ

  • Q Are you trading company or manufacturer ?

    A We are the leading manufacturer for composite products.
  • Q What is your terms of payment ?

    A 30% prepayment for production and 70% against BL copy.
  • Q How can you guarantee the quality of mass production is same with the sample sent to me before?

    A We randomly test every batch of the production to make sure the quality is under control.
  • Q How can I get a sample?

    A We offer a free sample but customer should pay the express.
  • Q How long is the shelf life of your Manhole cover?

    A 30 years.
  • Q How long it will be taken to develop a new molding according to the drawings?

    A We can make a sample and development in 30 days.
  • Q How long is your delivery time?

    A We have a mass production capacity and a regular 20ft order delivered in 15 days.
