Home / Products / Square Manhole Cover / 1100mm Square Manhole Cover

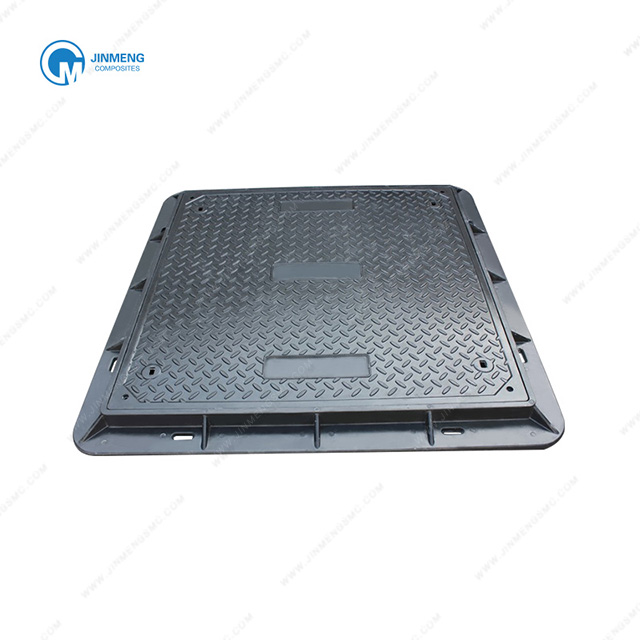

1100mm Square Manhole Cover

  • JM-MS204
  • B125, C250
Availability:

Main Description

SPECIFCATIONS   SPECIFCATIONS-1


CODE

LOAD

D

O

F

h

H

Features

JM-MS204B

B125

1160x1160

1100x1100

1380x1380

40

70

4 screw & Weight 114.0kg/20ft Full Load Qty 108

JM-MS204C

C250

1160x1160

1100x1100

1380x1380

40

70

4 screw & Weight 133.0kg/20ft Full Load Qty 108




A15 BS EN124 A15 Class C250  BS EN 124 C250 Class
Suitable for areas which can only used by pedestrians and pedal cyclitst Installed in the area of beside channels or road.
B125 BS EN124 B125 Class D400  BS EN124 D400 Class
Suitable for the footways, pedestrian areas and comparable areas, car parks or car parking decks. For area of carriageways of roads, hard shoulders and parking areas, for all types of vehicles.


FEATURES



anti-UV Anti-UV surface pattern Surface pattern and other customization service is supported
high loading High loading capacity feature-04 Shock absorption by rubber sealing
high anti-corrosion High anti-corrosion performance



ACCESSORIES


hinge

Hinge


rubber seal

Rubber Seal


through hole

Through hole

logo

Logo


slide lock

Slide Lock


slide lock1

Slide Lock
